Description

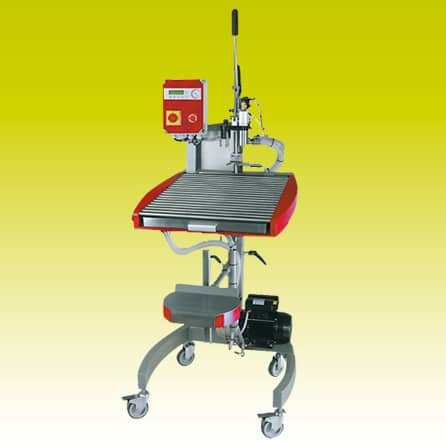

Manual Bag in Box filling system for hot filling of fruit and vegetable juice and cold-filling wine in 3, 5, 10 and 20 l standard Bags. A feed line buffer vessel is needed for hot filling.
Nominal rating l/h | 1500 (with 10l Bags) l/h |
Electrical power | 1 kW |
Connected load | 400V 50Hz (3-phase) |
Electrical protection | 16 A |
Length | 1000 mm |
Width | 700 mm |
Height | 1500 mm |
Weight | 80 kg |
Material | 1.4301 / AISI 304 |
Filling accuracy | ± 0,5 % |
Compressed air connection | 6 bar |
Scope of supply | incl. cleaning adapter |
