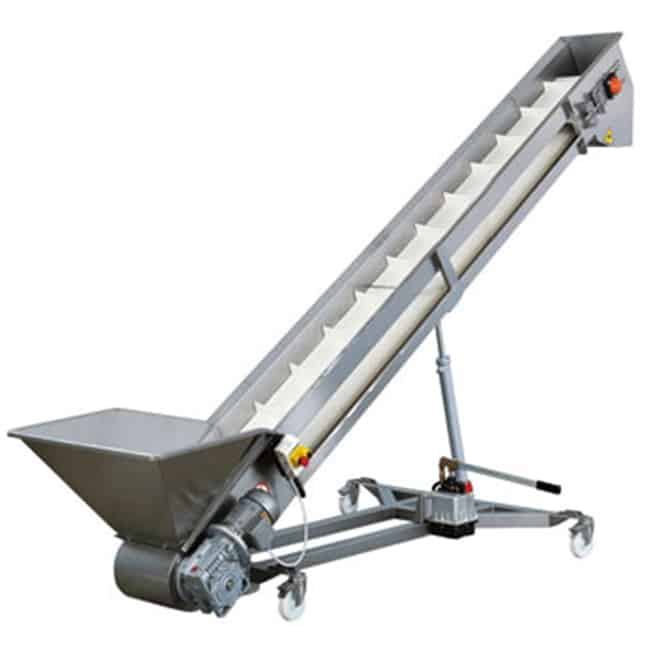

Cleated Inclined Conveyors

Description

Entirely manufactured with AISI 304 stainless steel
Electronic speed control with VFD
Lowered hopper – standard
Washing bar for cleaning backside of belt
Hydraulically adjustable incline from 30 -45 degrees (to affect discharge height)
Locking swivel wheels
Open design makes it easy to clean
Available in 2500mm, 3500mm, 4500mm, 5500mm, 7000mm conveyor lengths
OPTIONAL: Free-standing 400kg over-sized hopper on support frame, 4 legs w/locking swivel wheels
OPTIONAL: 500L over-sized hopper attached attached to elevator replacing standard hopper
OPTIONAL: Adjustable rotating discharge chute for directional product discharge

Conveyor Lengths:	– 2.5m, 3.5m, 4.5m, 5.5m, 7.0m
Options:	– 400kg free-standing over-sized hopper with support frame, locking swivel wheels and PVC discharge curtain to direct fruit onto elevator – 500L over-sized hopper attached to elevator replacing the standard hopper – Adjustable rotating discharge chute for directional product discharge
