Horizontal Screens DE Filter (2-6 sq. m.) DCBL – Wine & Cider

DE Horizontal Screen Filters – Wine & Cider – 2 -6 sq. meter

For more information regarding this particular product please use the Product Enquiry Tab Below. For any other Enquires please use our Contact Us Form.

Description

HORIZONTAL SCREENS DE FILTER (2-6 sq. m.) – DCBL / WINE/CIDER

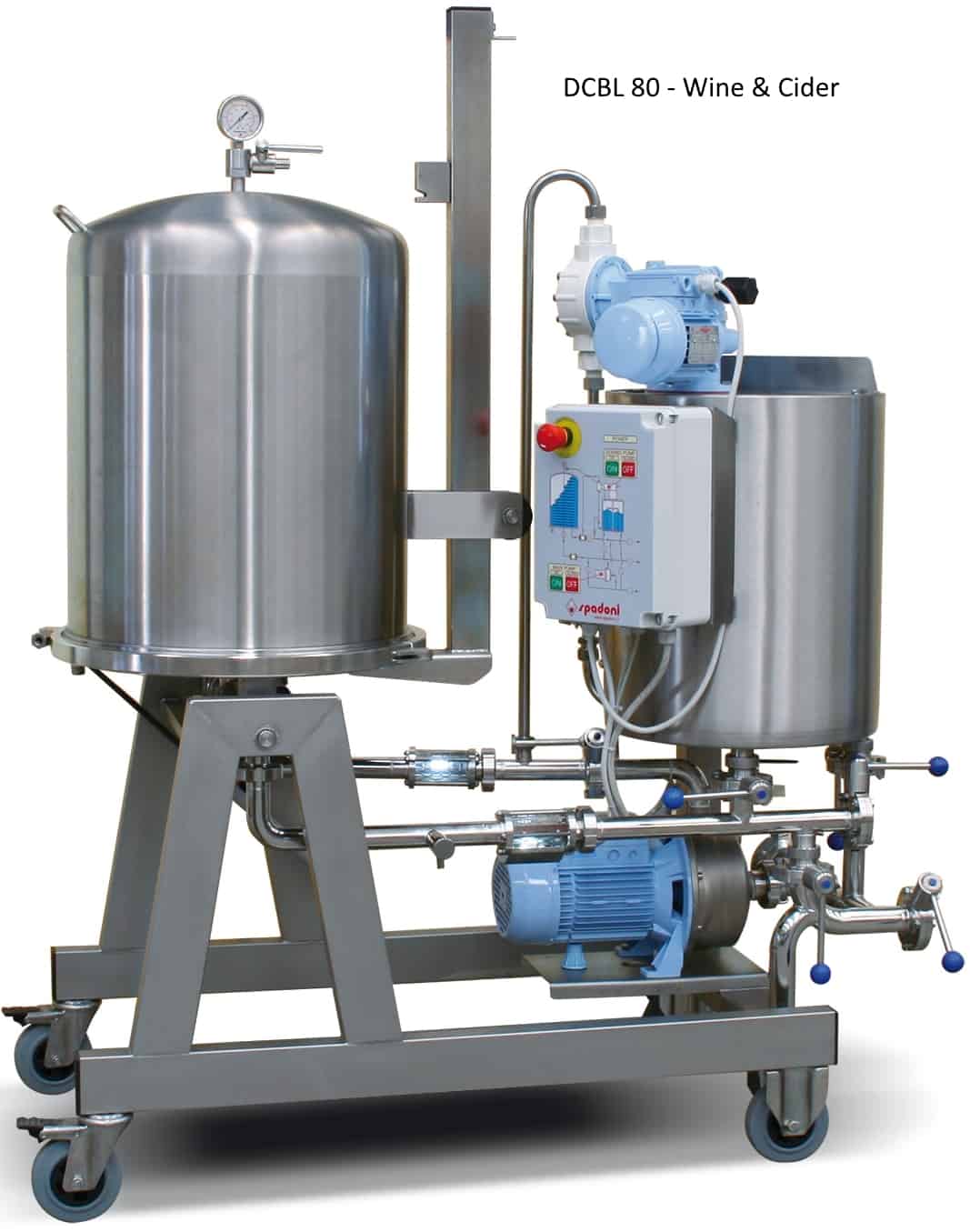

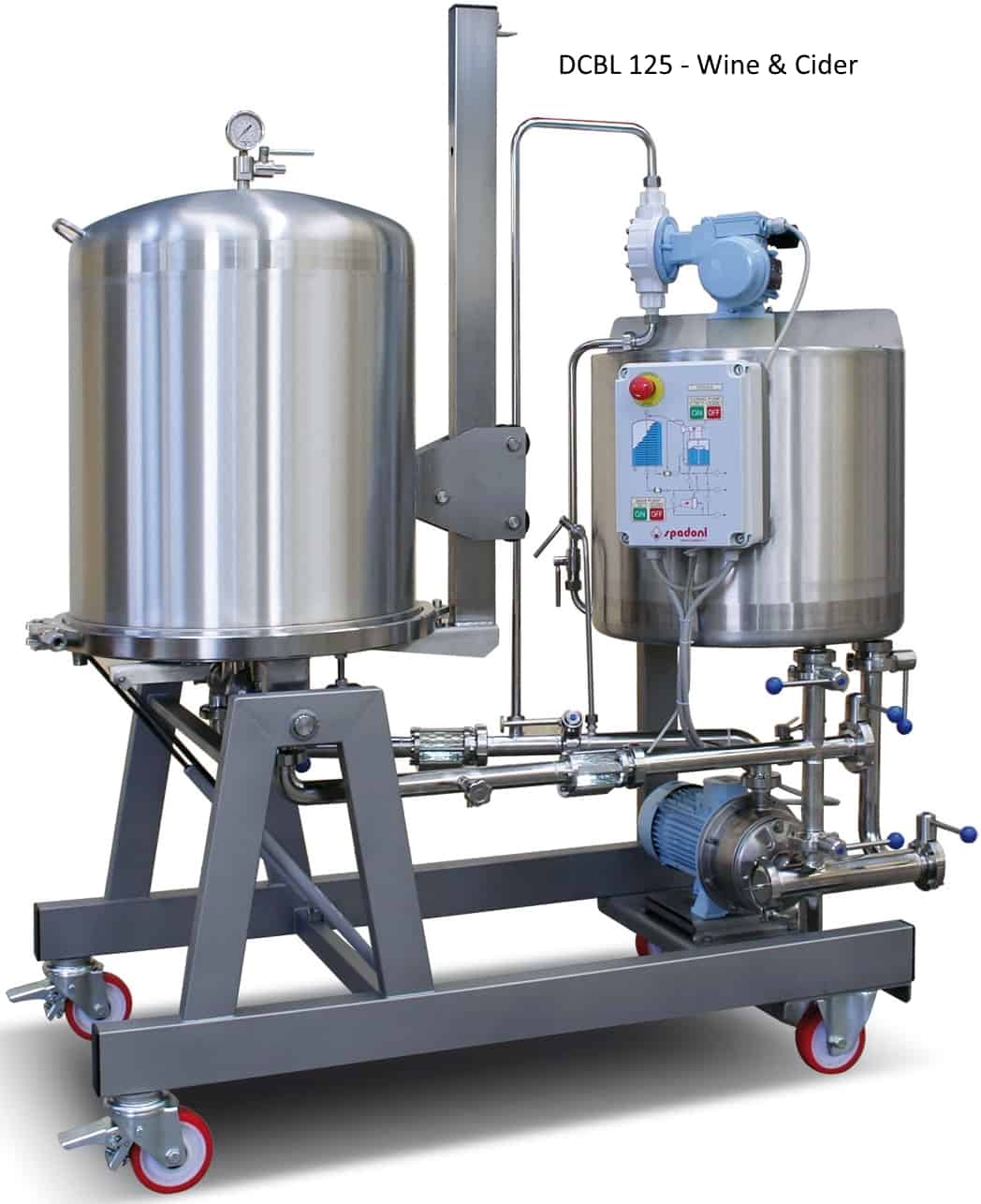

Models: DCBL 50/80/100/125/150

FEATURES:

  • Manufactured by SPADONI MECCANICA in Orvieto, Italy since 1951
  • SS304 construction throughout
  • Manual spent DE discharge
  • 1.5”TC or DN40 inlet/outlet connections with butterfly valves
  • Compact design with castors for easy mobility
  • 80 micron screens
  • Adjustable output diaphragm dosing pump
  • Integrated DE mixing paddle in dosing tank
  • Centrifugal feed pump
  • Inlet and outlet lighted sight glasses
  • SS304 Sampling valve

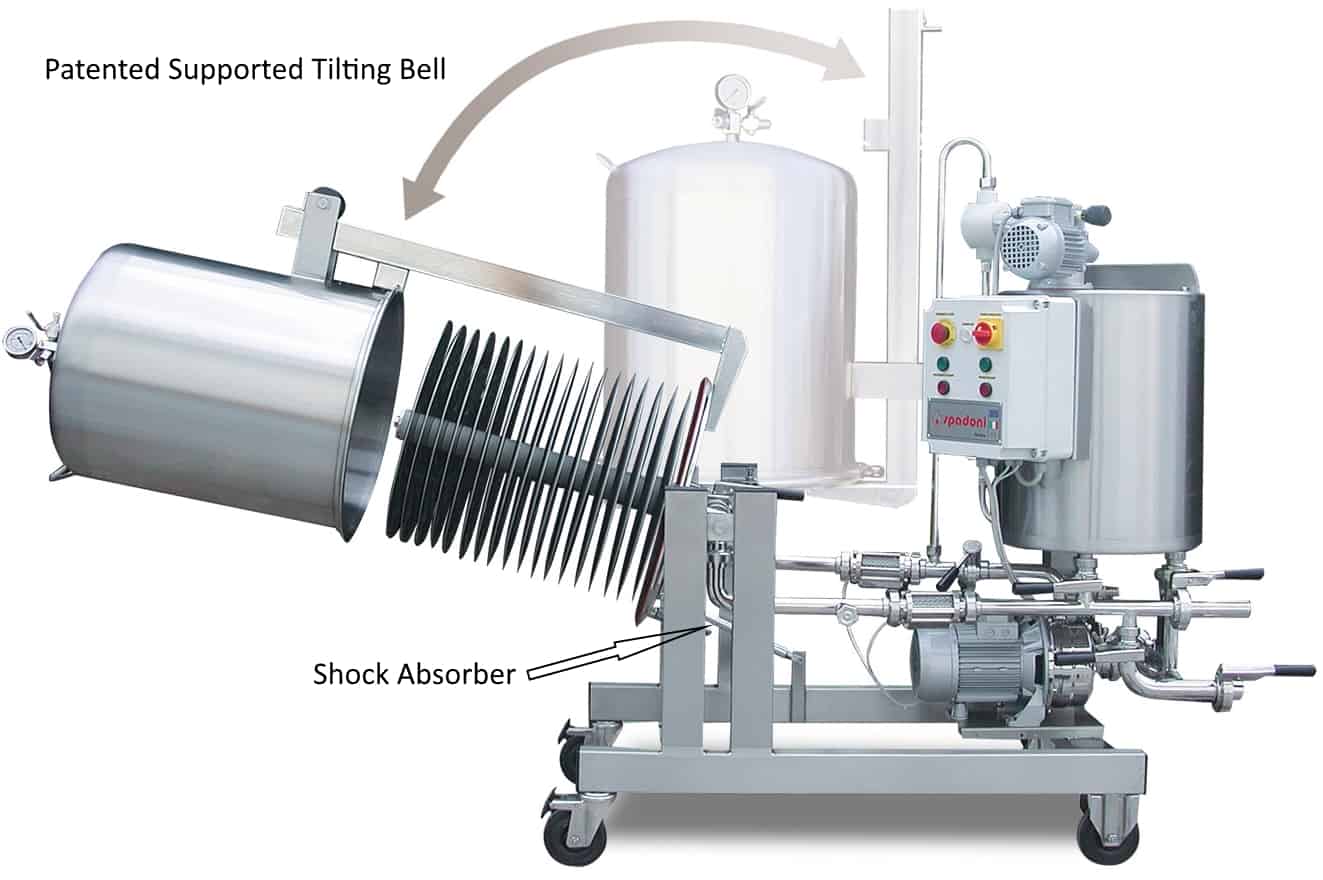

  • Patented tilting design of the bell housing which slides open on a shaft and is supported with a shock absorber (not required on DCBL/50)
  • Bell housing pressure gauge
  • PP screen spacers
  • Pressure relief valve
  • Residual filter screen for filtering contents of bell housing at the end of filtration runs
  • TC style bell housing closure clamp
  • Bell housing overflow return line to dosing tank
  • Flow meter
  • Splash-proof sealed stainless steel control box
  • 1 year parts warranty
  • Spare parts in stock

Additional information

OPTIONS AVAILABLE

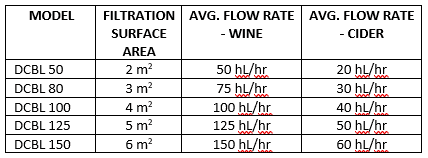

• SS316 construction • SS304 trolley for spent DE & residual liquid collection (Designed to roll under the tilted bell housing during cleaning) • Rathman clamps for bell housing closure fastening • Single phase motor for DCBL 50 & DCBL 80 • Sparkling wine filtration upgrade • SS304 screen spacers • Sizes: DCBL-50: 2 sq. m, DCBL-80: 3 sq. m, DCBL-100: 4 sq. m, DCBL-125: 5 sq. m, DCBL-150: 6 sq.
