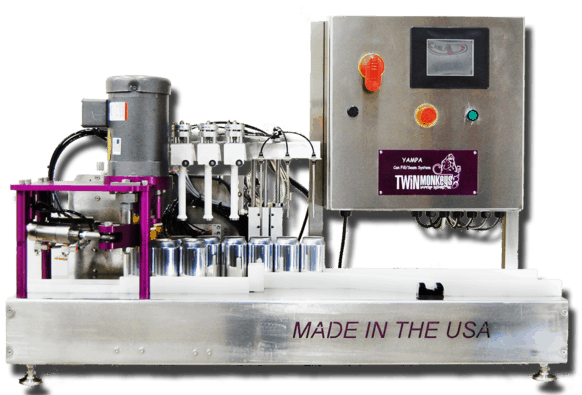

The Yampa Canning System

Table top canner with loads of options. Lowest cost option. Uses the same premium components as all Twin Monkeys canners.

For more information regarding this particular product please use the Product Enquiry Tab Below. For any other Enquires please use our Contact Us Form.

Description

The Yampa Canning System

“Tabletop canner with loads of options. Uses the same premium components as all Twin Monkeys canners.”

Capabilities: Simple/quick change between 12oz and 16oz cans (other sizes can be specified at time of order)

Low O2 packaging levels from the following:

  • Closed fill tubes that do not re-acquire air between fill cycles
  • Pre-fill purge station that clears air out prior to fill
  • Short paths from fill to seam
  • CO2 blanket generator at lid applicator
  • Lids applied on foam

Equipped with:

  • Adjustable timers for system functions
  • CIP/SIP for fill system
  • Operator controlled fill levels, timing functions, and run rate
  • Individual volumetric flow meters for precise measurements of fill volumes
  • Modern PLC machine controller and operator color touch screen
  • Seamer components that can be swapped without requiring adjustments
  • Washdown-compliant sensors, pneumatics, enclosure, and decking
  • Nema 4X electrical enclosures

Utilities

  • Power: 120V 15A 1-phase (other voltages are possible)
  • Controls Air: 90 psi 1.3 cfm of clean, dry air
  • CO2: 20 psi .5 cfm of CO2
  • Beverage: Pre-carbonated product at 2.2-2.9 volumes of CO2 at 32-34⁰F
    • (still beverages may be packaged on this system as well)

Specs

  • Throughput: 20+ cans/minute (12 oz cans)
  • Can Sizes: 12 oz. and 16 oz. standard, others available on request
  • Dimensions: 54”L x 23”D x 36”H (for base unit), some options add length
  • Weight: 200 lbs
  • Construction: 304 stainless steel and anodized aluminum
